Features:
The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc.
Waterproof and pressure sensitive dual function
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
High sensitivity and long service life
Application: Smart home, medical electronics.
When sensor detects outside pressure, the resistance of sensor will change.
Pressure signal can be converted into a corresponding electrical signal output using simple circuit

Specification:
Model: ZD10-100

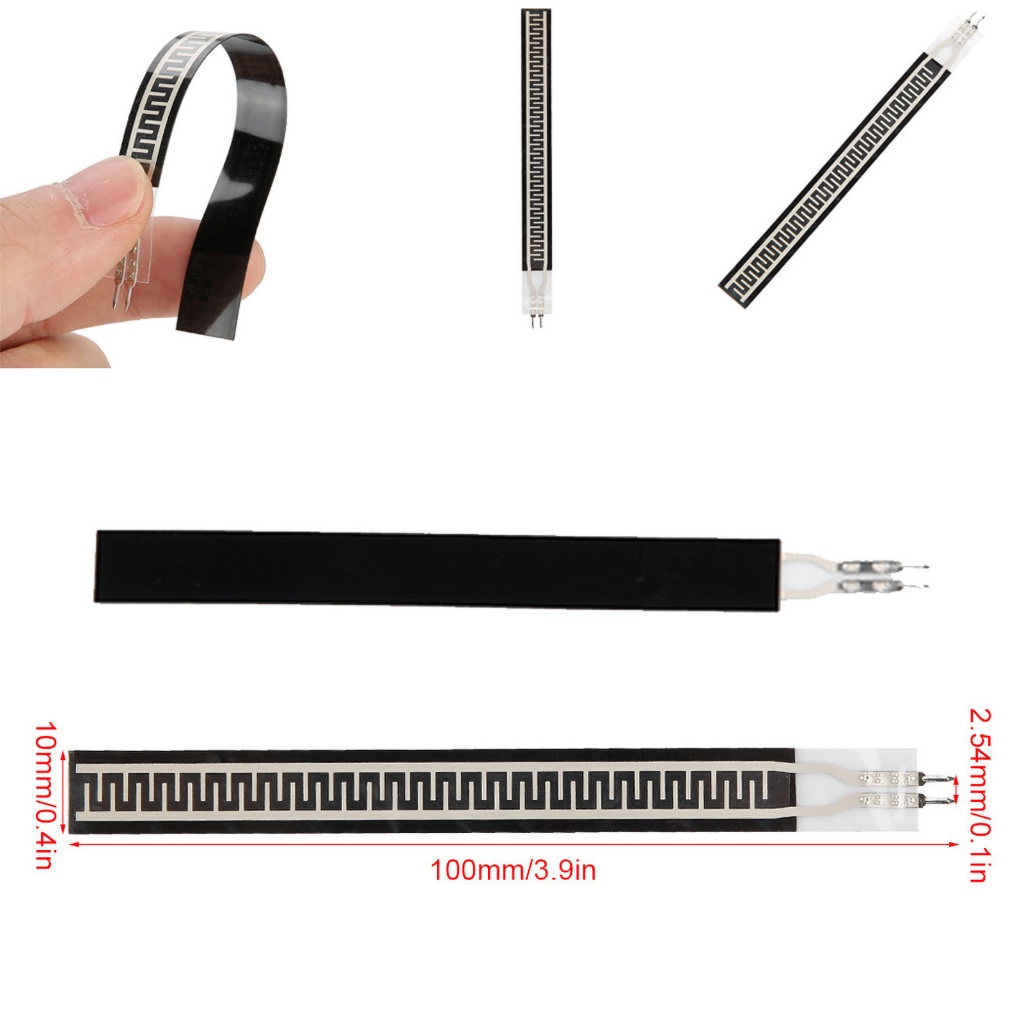

Length: 100 mm/3.9in
Width:10mm/04in
Range: 0 ~ 500g
Thickness:less than 0.25mm
Response point: less than 20g
Test voltage: typical dc3.3v
Durability: more than 1 million times
Response time: less than 10ms
Recovery time: less than 15ms
Working temperature:- 20℃~ 60℃
EMI: no
ESD: not sensitive
Weight: Approx.3g/0.1oz


Package List:
1 x Pressure Sensor
